- OS: Android 10
- CPU: Quad-core CPU Processor
- RAM: DDR3 2GB
- Support WCDMA System
- Resolution: 1024*600
- Boot time: about 1s
- Brand: PUMPKIN
- SKU: AA0507B

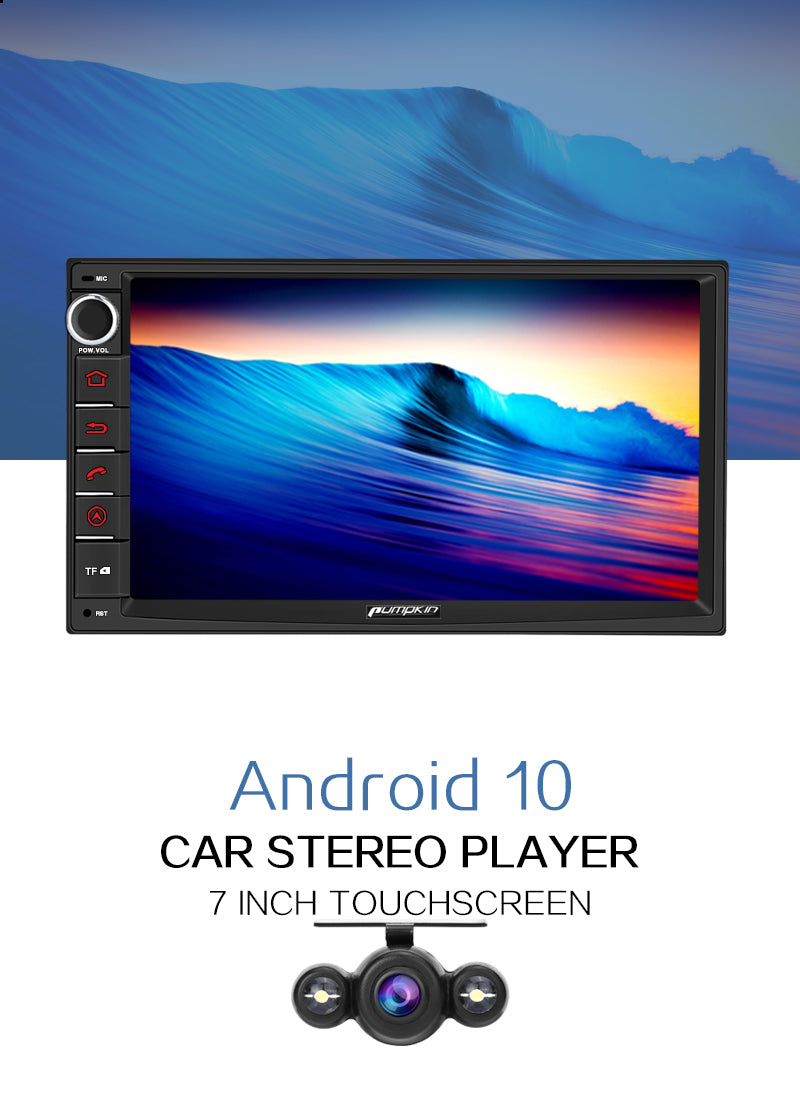

Pumpkin 7 Inch 2 Din Android 10 Radio Car Music System with 3G 4G WCDMA System and Backup Camera Support Carplay DAB+ OBD2
Key Features
- Pumpkin Quad-core Android 10 best car audio sound system for most car, it comes with high-quality NXP 6686 radio IC, the effect is better. Only 3G and 4G networks of WCDMA standard are supported. It can also be accessed by connecting to a WIFI hotspot. (SIM card is not included) and can be downloaded, listened to and watched online.

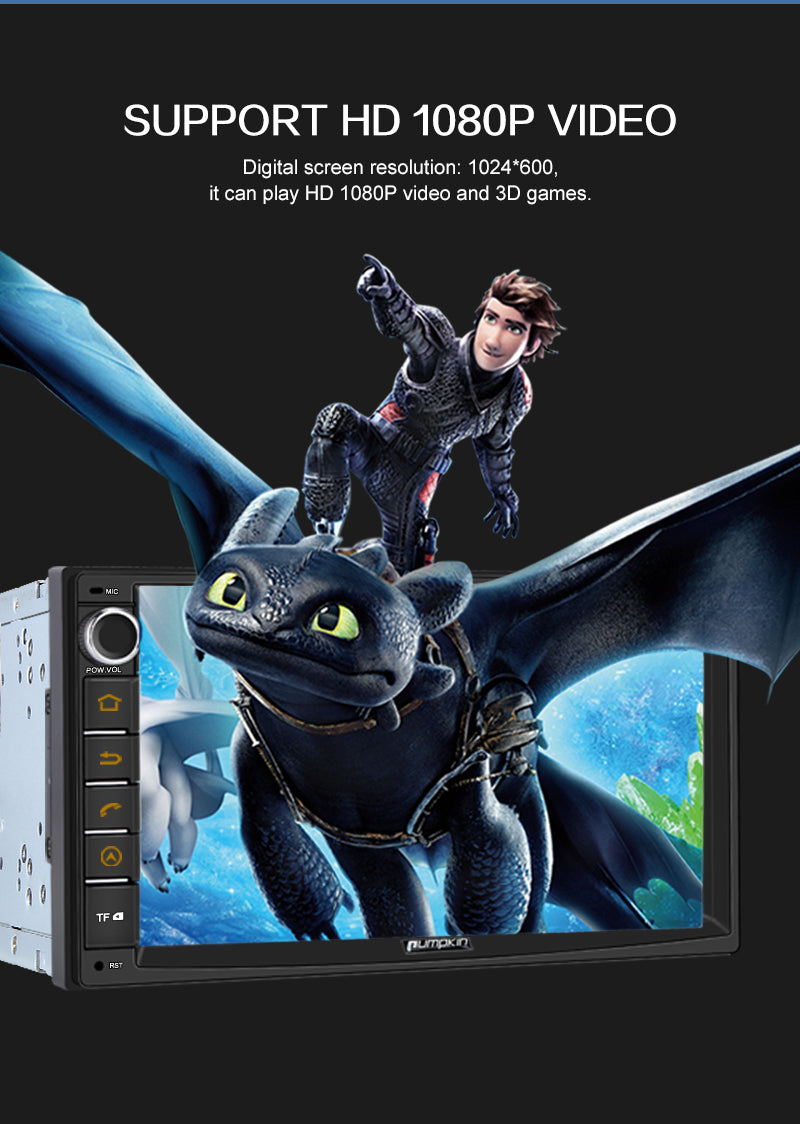

- Built-in ST7388 power amplifier IC supports subwoofer output. 7-inch high-definition display, 1024*600 resolution, supports 1080P video playback, mirror link, can display the mobile phone's online navigation on the machine, supports DAB digital radio broadcasting (optional).
- Built-in USB/SD card slot (maximum support 64GB), built-in wifi module, support reversing camera function (camera optional), support Bluetooth calls, Bluetooth music, support synchronous phone book, fast search contacts and support external microphone, support GPS.

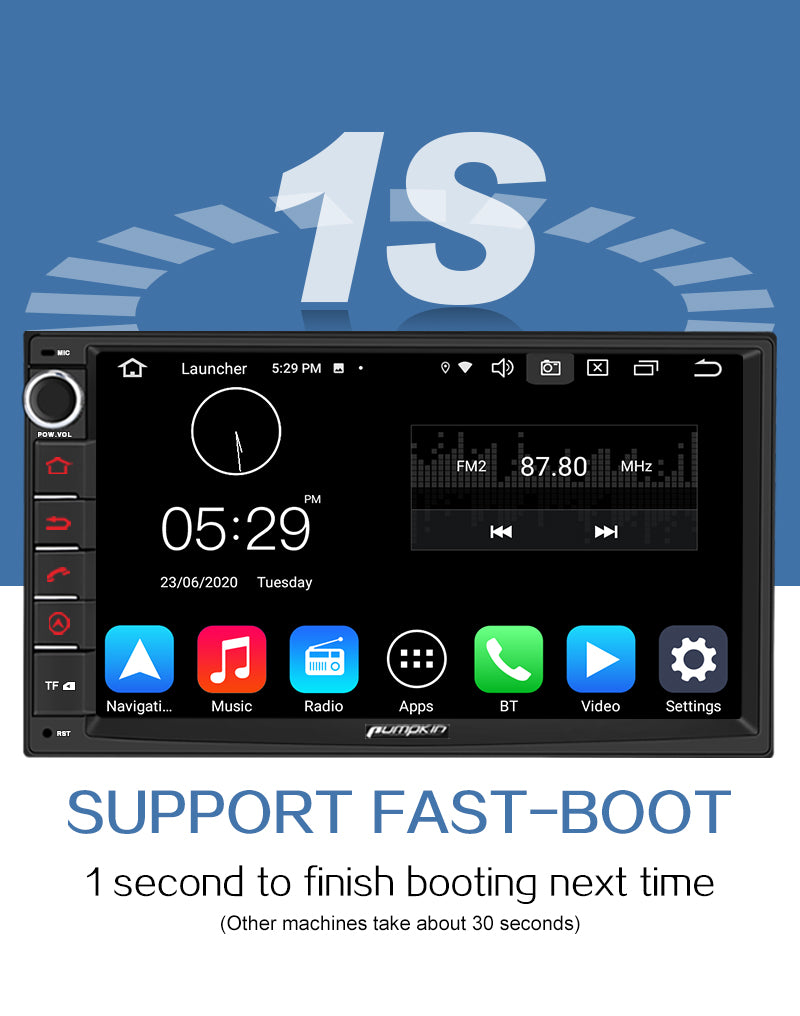

- Support Fast-boot. After the installation, this machine only need about 1 second to finish booting from the 2nd time. (Other devices typically take 30 seconds.)

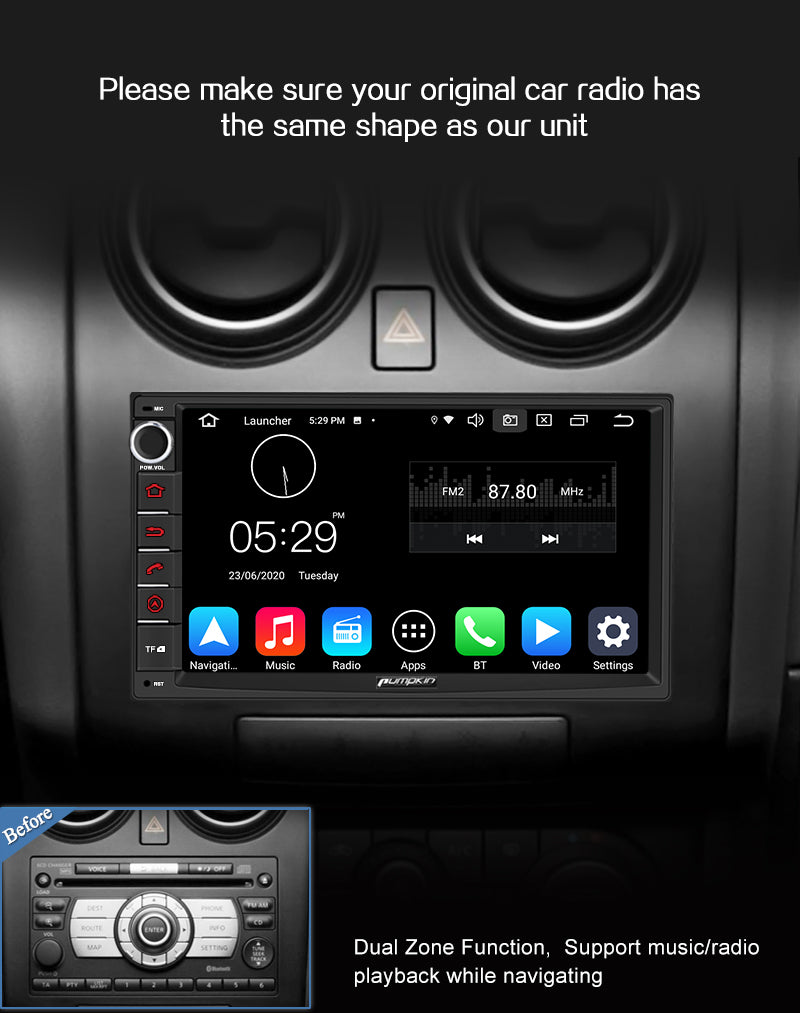

- Please compare the dimensions, shape of our unit before purchasing, in case it does not fit the dashboard.





















Specifications
OS: Android 10
CPU: Quad-core CPU Processor
RAM: DDR3 2GB
Nand Memory: 16GB
Radio IC: NXP 6686
Bluetooth: BT 4.2
Working Voltage: 10.8~14.8V DC
Audio output: 4*50W Max
Boot time(2nd time): about 1s
Screen
Screen Size: 7-Inch display Screen
Resolution: 1024*600
Capacitive Touch Screen (5 points)
Image Brightness /Contrast/ Color Adjustable

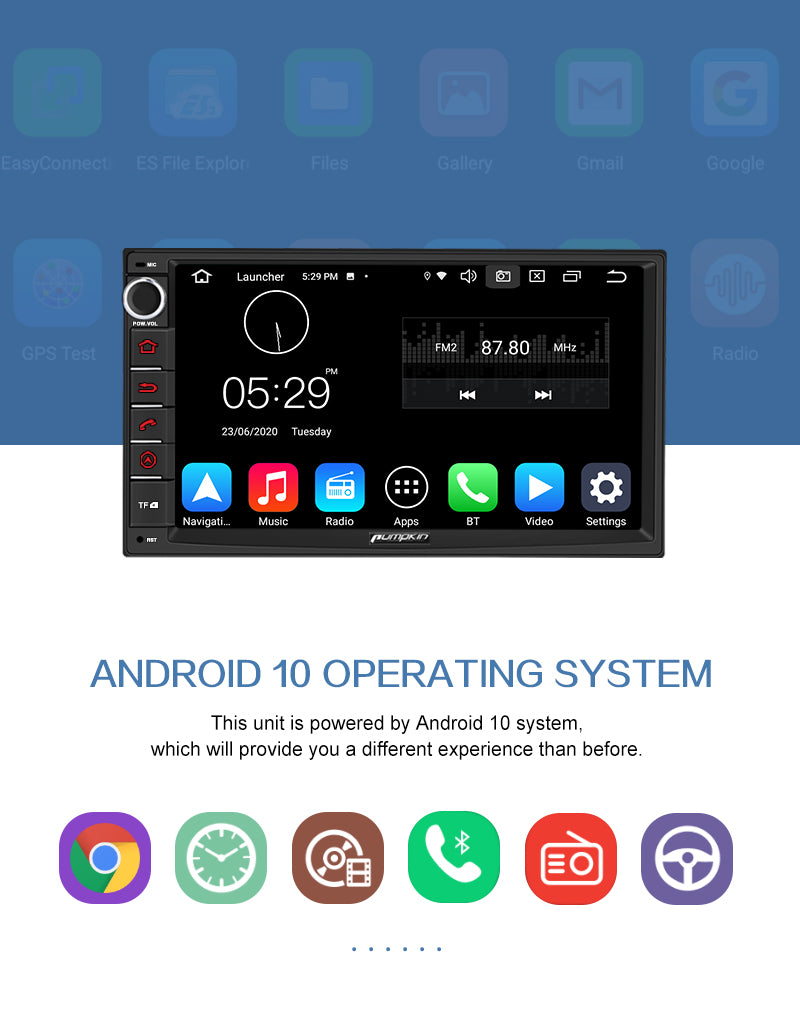

Operation System
This unit is powered by Android 10 system,Quad Core CPU Processor,
which will provide you a different experience than before.

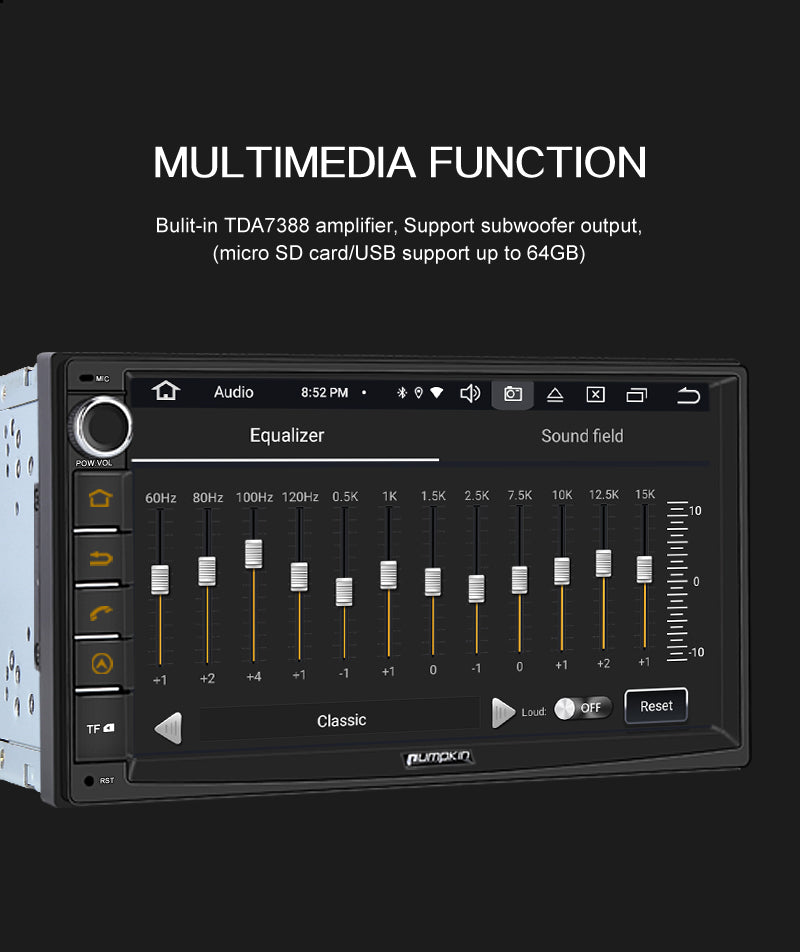

EQ
Built-in TDA7388 amplifier IC, Supports subwoofer audio output, and control it separately.
Max audio output: 4 X 50W,

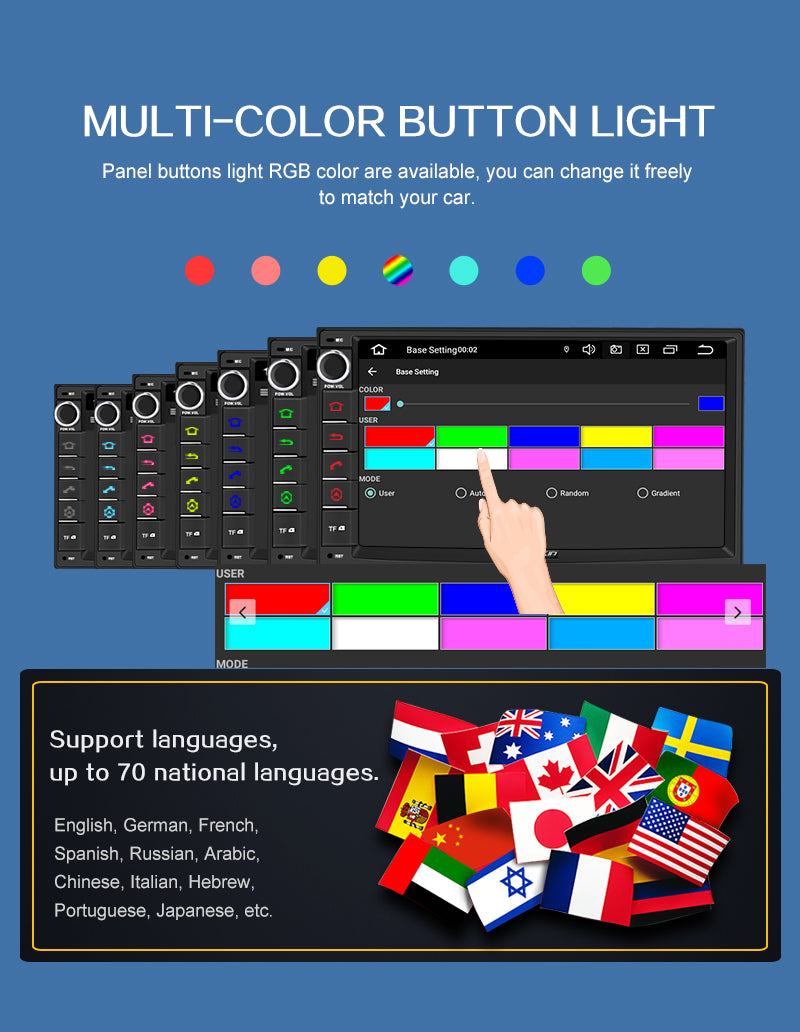

Multi-color button light
Panel buttons light RGB color are available, you can change it freely to match your car.

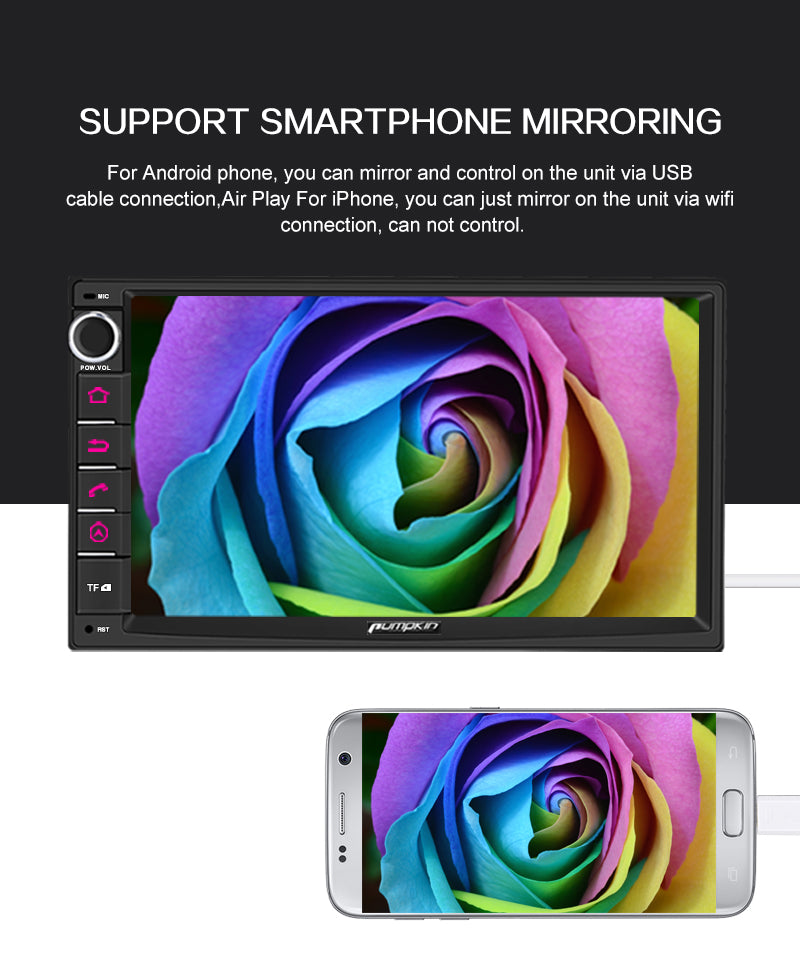

Phone Mirroring
Mirror your phone on the 7 inch screen.
For Android phone, you can mirror and control on the unit via USB cable connection,
Air Play For iPhone, you can just mirror on the unit via wifi connection.
GPS
Support online and off-line navi app, support 3D Maps and voice guidance, your long journey will no longer be bothered by the nightmare of getting lost.
Map Storage Mode: Micro SD Card
Voice Guidance: Yes
3D Map: Yes
(Support radio/Bluetooth/USB/SD playback while navigating.)

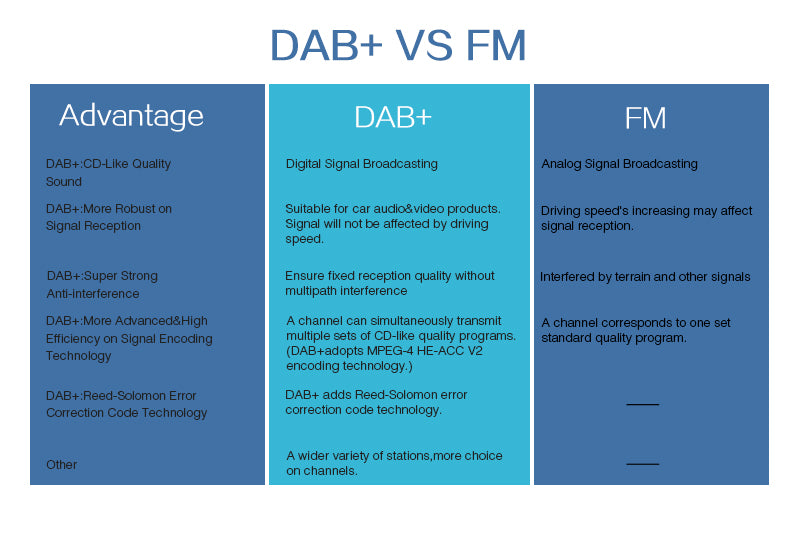

DAB+ Digital Radio (Extra DAB+ box NA7001B required)
Digital Audio Broadcasting allows you multi-regional music with your local well-known and also new channels. CD sound quality and noise-free in excellent transmission make DAB Radio a special experience in the vehicle.
Which make DAB broadly accessible to most of Europe.

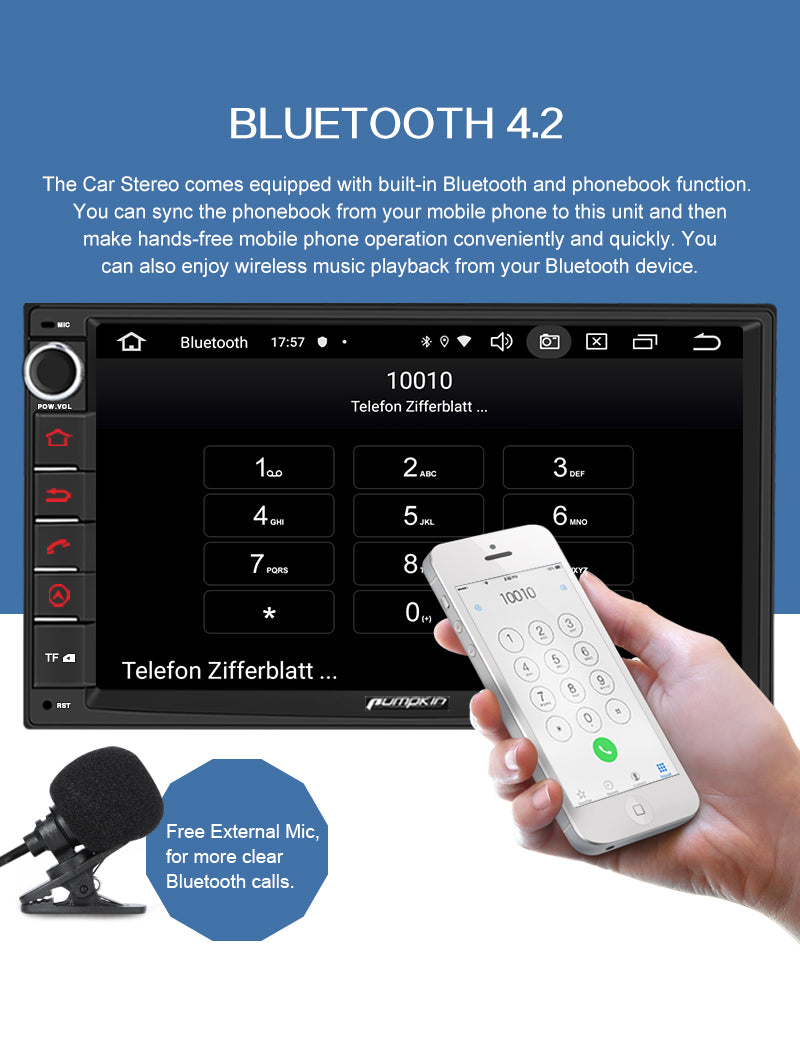

Bluetooth 4.2
Built-In Microphone in the control panel for hands free calling function
External microphone also included for free clear voice calling
Support Bluetooth audio player/Phone Book function, quick search contacts.
(Attention: This function can only be realized when the mobile phone supports Bluetooth Audio Output/Contacts Output)
Support Bluetooth Connection for iPhone/ Most Android Phones/ Even some None Smart Phone
(Attention: The Bluetooth just for audio stream transfer, it doesn’t support file transfer or Internet tethering.)
Steering Wheel Control
Change the track, volume, etc. conveniently without taking your hands off the steering wheel, which makes your driving much safer.
(Attention: Only support resistance based analog signal input steering wheel)

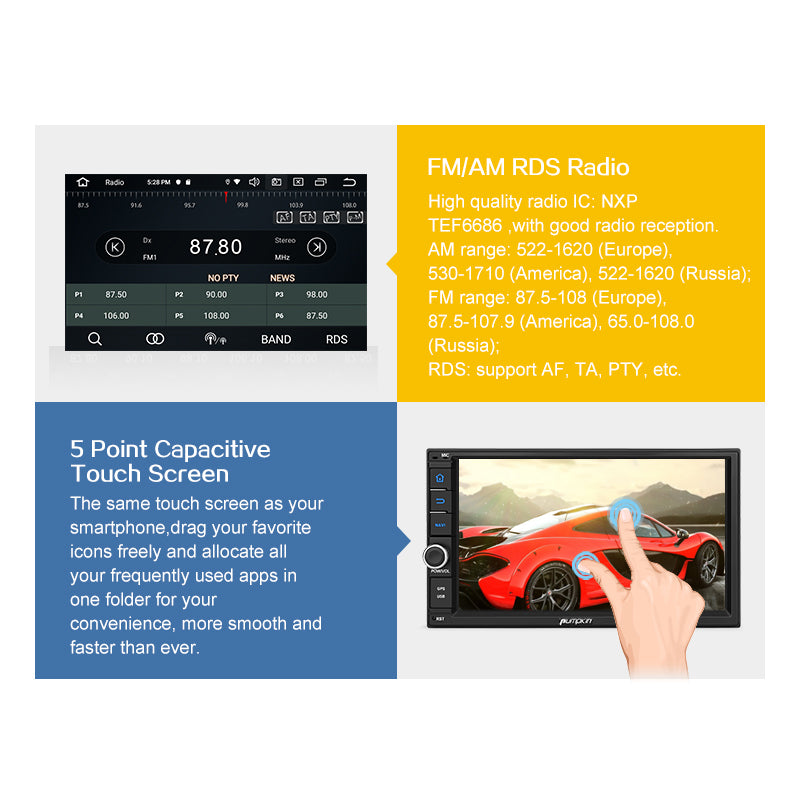

Radio
High quality radio IC: NXP6686, with good radio reception
AM/FM tuner built in (worldwide)
AM frequency range: 522-1620 (Europe), 530-1710 (America), 522-1620 (Russia)
FM frequency range: 87.5-108 (Europe), 87.5-107.9 (America), 65.0-108.0 (Russia)
RDS Radio: Yes
USB/SD
Built in micro SD card slot/ USB Port.
Support SD card/ USB drive up to 64GB.
Support Audio Formats: MP3/WMA/WAV/APE/FLAC/OGG/AC3, etc.
Support Video Formats: RMVB/AVI/MPG/MPEG/VOB/MOV/ASF/FLV/3GP/MP4, etc.
OSD Language
English, German, French, Russian, Spanish, Turkish, Portuguese, Arabic, Chinese, Italian, Thai, Hebrew, Danish,Hungarian,Dutch,Polish,Finnish,Greek,Bulgarian,Belgian,Swedish,Japanese,etc.

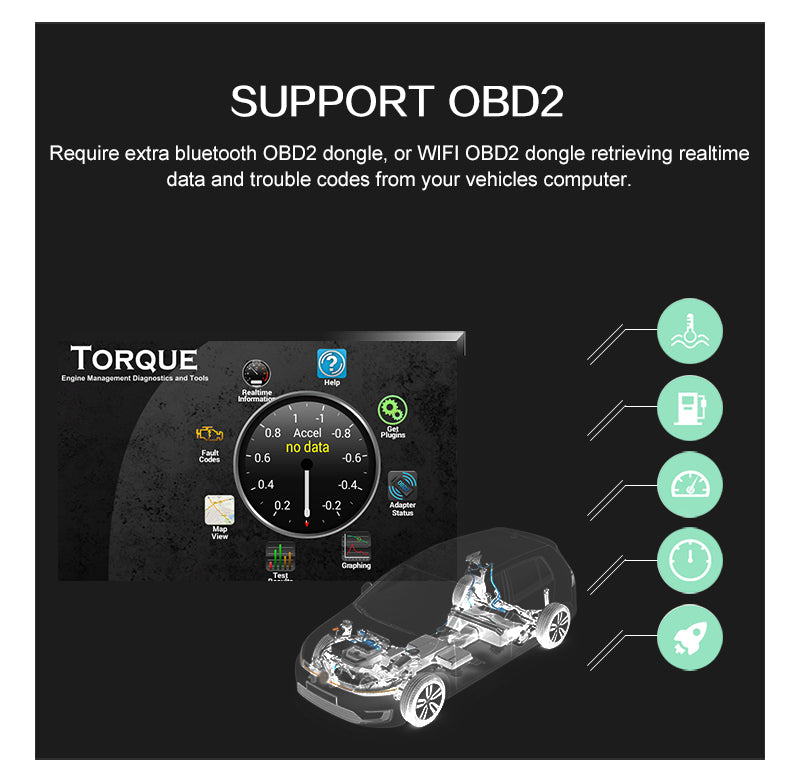

OBD2 (Extra device required)
Compatible: Most of Bluetooth type ELM327 OBD2 scanner and wifi OBD2 (Search Y0004/Y0034 on our store)
Compatible Application: Torque
Display Data: Real-time data and trouble codes from vehicles computer.
(Attention: Few cars may not support the ECU reading accessing, those cars will not work this function.)

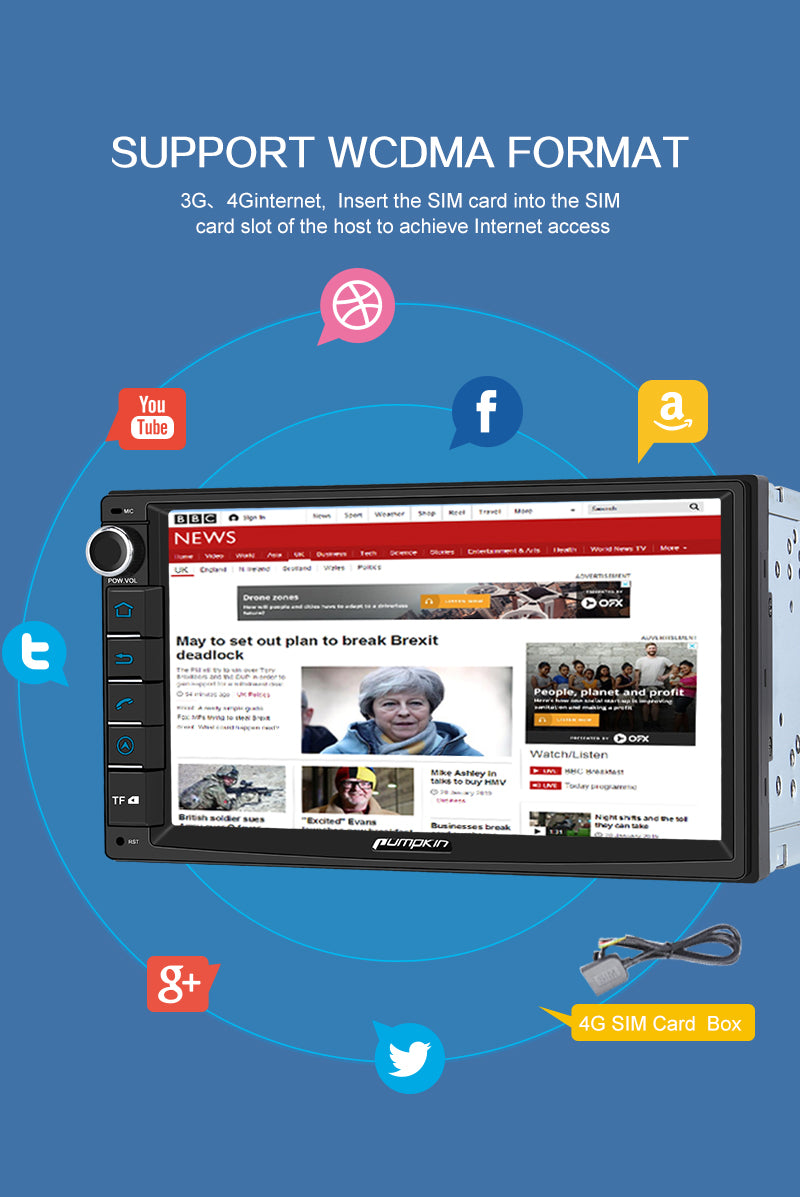

Support WCDMA System
3G、4Ginternet,
Built-in SIM card slot, insert the SIM card into the SIM card slot of the host to achieve Internet access
WIFI: Built in WIFI modem
Direct turn on WIFI function to search and connect to any free WIFI hotspots
(It comes with 1.5m long WIFI antenna for better signal reception.)

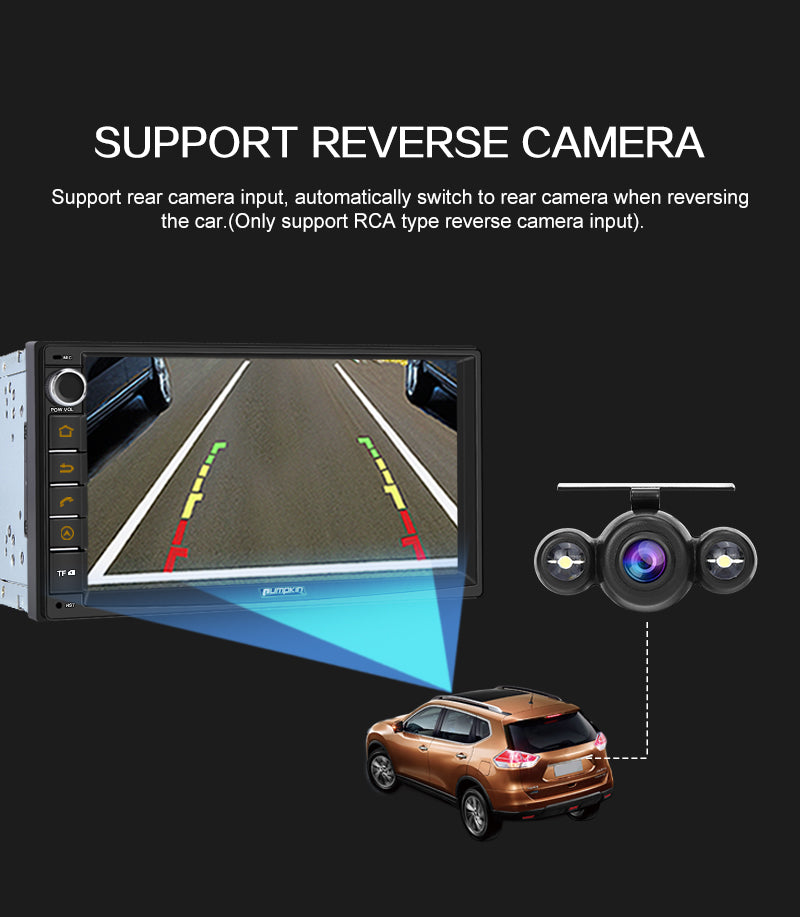

Cam-In(Extra device required)
Support RCA type reverse camera input, automatically trigger to reverse camera when reversing the car.
