- Size : 10.1 Inches
- Type: Double Din
- OS: Android 11
- CPU: Dual Cortex-A72 + Four Cortex-A53 size core
- RAM: DDR3 4GB
- Nand Memory: 64GB
- Radio IC: NXP TEF6686
- Amplifier IC: TDA7388
- Bluetooth: BT 5.0
- SKU: AA0718B (Updated from AA0513B)
Pumpkin 10.1 inch Android 11 Double Din Car Stereo with Rotating Screen GPS Navigation Radio Bluetooth, Support Android Auto CarPlay DAB+ (Universal type)
With this Pumpkin 10.1 inches Android 11 double Din car head unit, you can install music system in car as well as GPS navigation, RDS radio, Bluetooth BT hands-free calling and music streaming, it also supports phone mirror-link, steering wheel control, Wi-Fi, and is compatible with external USB, SD card, the Android Auto/ Apple CarPlay USB Dongle, DAB+ digital radio box, OBDII car scanner device, and reverse camera.
Android 11, RAM:4GB, 64GB ROM, CPU:Dual Cortex-A72 + Four Cortex-A53 size core Processor, High quality radio IC: NXP TEF6686, with good radio reception.
Built-in TDA7851L amplifier IC, supports subwoofer audio output, and control it separately. Screen Resolution: 1024*600, support 1080P HD video, support mirror link function, you can use your smartphone's online GPS to mirror on this unit,support DAB+ function(optional)
Adjustable Viewing Angle, Support output almost everything to the headrests,even it play the video from USB,or online Youtube video. Built in USB Port (up to 64GB), WIFI(Built in WIFI modem)/ 3G(Extra device required), Support reversing camera (Extra device required)
Please compare the dimensions, shape of our unit before purchasing, in case it does not fit for your car.
Support Bluetooth call /audio play, Sync phonebook, quick search contacts, external microphone, Support GPS Navigation(map software or app not included),
Support Fast-boot. After the installation, this machine only need about 2 seconds to finish booting from the 2nd time. (Other machines typically take 30 seconds)
Built-in Google maps, supports both online and off-line navigation APPs, including iGo and TomTom.
Both 3D Maps and voice guidance are available to guide your long trip in the way you like.
(Radio/Bluetooth/USB/SD playback are all still available while the navigation APP is running.)

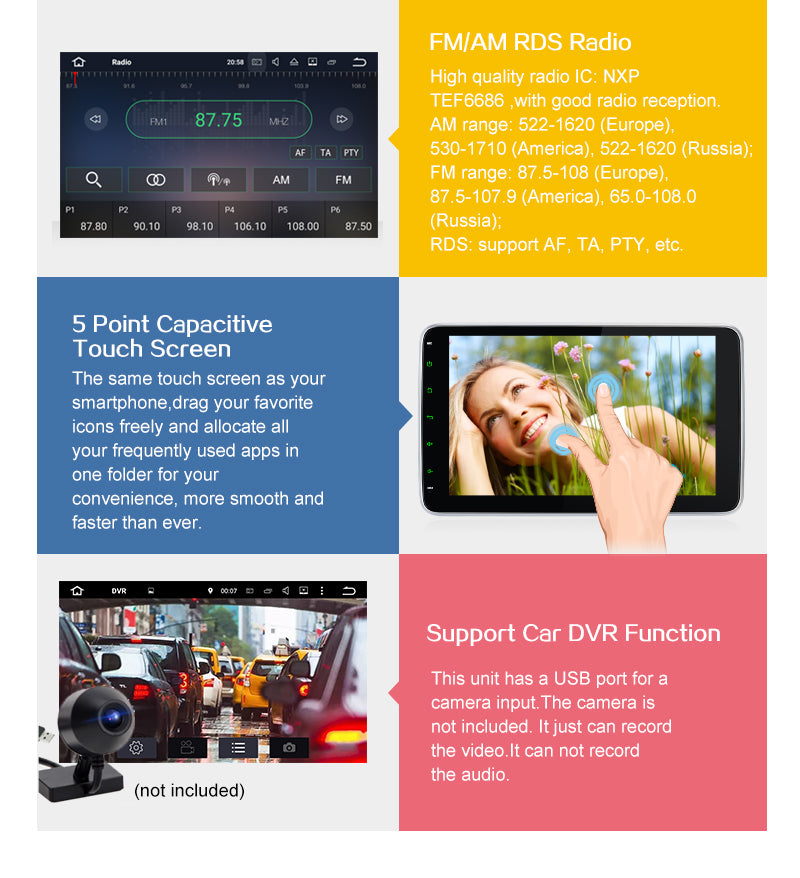

At least 18 FM stations and 12 AM stations are preset in this double din android deck.
High-quality radio IC NXP TEF6686 delivers a broader tunning range of FM and AM with low phase noise following and it can detect the weak signal in a better performance than others.
Built-in AM/FM tuner (worldwide)
AM frequency range: 522-1620 (Europe), 530-1710 (America), 522-1620 (Russia)
FM frequency range: 87.5-108 (Europe), 87.5-107.9 (America), 65.0-108.0 (Russia)
RDS Radio: Yes. (Need to be turned on manually for countries that are not available for RDS radio.)
Bluetooth tethering is not just about streaming music wirelessly, it also enables a car stereo to make and receive clear hands-free calling with the built-in Microphone. Bluetooth audio player and the Phone Book function are all ready, same as quick searching the contacts after synchronizing your phone book.
- The Bluetooth connection is available for iPhones,most Android phones, and even some non-smart phone
- The Bluetoothfunction is only available for the mobile phone that supports Bluetooth audio output and contacts output.
- The Bluetooth functionjust for audio stream transfer, it doesn’t support file transfer or Internet tethering.

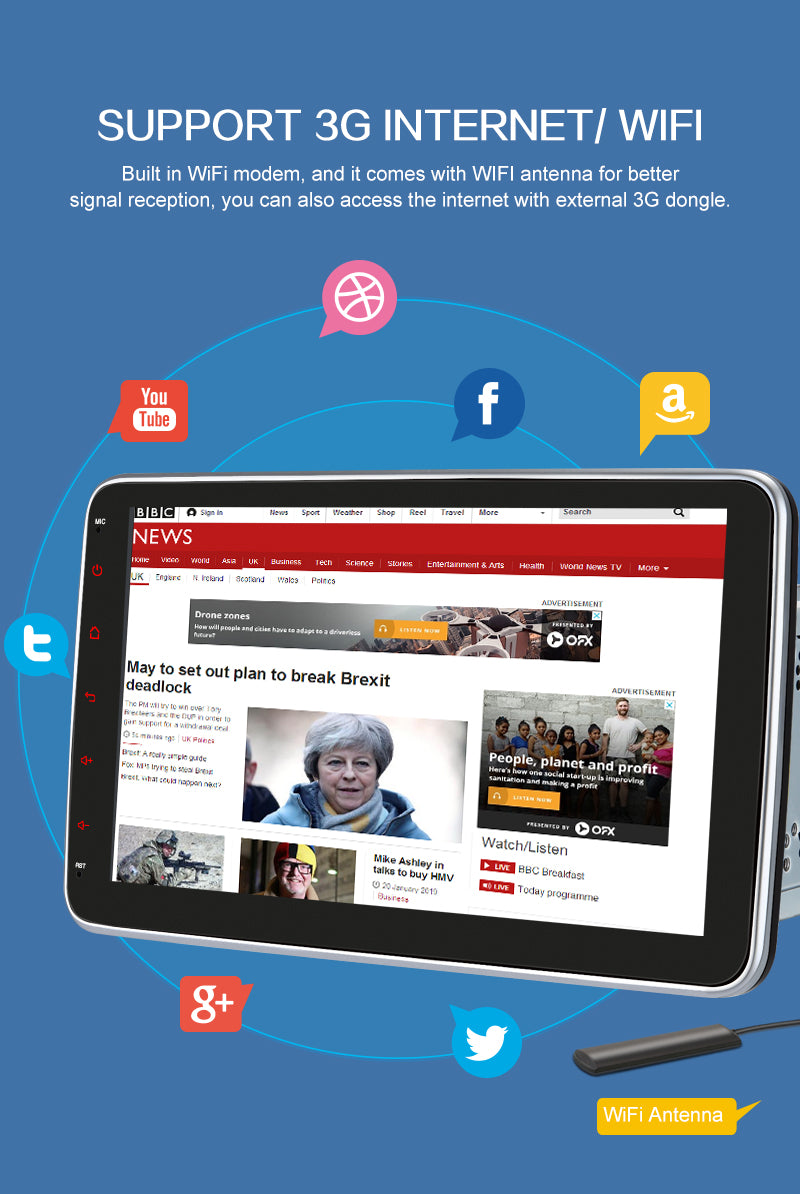

Built-in WIFI modem, you can use the hotspot WiFi from your cellphone or any free WIFI around. (A WIFI antenna is included in the package for better signal reception.)
Support WCDMA 3G bandwidth, it requires an external USB 3G modem and a local Internet SIM card.
Support cellphone OS: Android 8.0, Android 9.0, IOS 11.4 or other updated OS.
With built-in TDA7388 amplifier IC, this multimedia system supports subwoofer audio output, and the EQ can be controlled separately. With up to 4 X 45W Max audio output
Built-in micro SD card slot and USB Port enables this multimedia car player to play diversified audio and video formats from the external SD card or USB (up to 64 GB with FAT32 or NTFS format).
Support audio formats: MP3/WMA/WAV/APE/FLAC/OGG/AC3, etc.
Support video formats: RMVB/AVI/MPG/MPEG/VOB/MOV/ASF/FLV/3GP/MP4, etc.
Multiple colors of button light
Free to change button light RGB color of the car head unit panel to match with your car’s in-dash color or your daily mood.
Both mirror the Android phone and control it on the touch screen via the USB connection are available.
Only can mirror the iPhone in the touch screen via the Wi-Fi connection, control it from the car head unit is not available.
SWC Steering Wheel Control
Setup and connect the steering wheel control interface on the Pumpkin head unit with your vehicle to change the track, volume, etc. conveniently without taking your hands off the steering wheel, to control and change your driving entertainment system without compromising a tiny single safety. (Attention: Only support resistance based analog signal input steering wheel)
Support Android Auto/ Apple CarPlay (Extra USB AutoPlay Dongle NA7006B required)
Apple CarPlay and Android Auto are all compatible with all the models of Pumpkin Android car stereo systems to offer you a safe and simple way to communicate with your smart phone like reading a message from the screen or just listening to it. By simply speaking out “call John” to make a phone call, which only takes an extra Pumpkin USB AutoPlay Dongle NA7006B, Android Auto, or Apple CarPlay in your car radio is ready to go.
DAB+ Digital Radio (Extra DAB+ box NA7021B required)
As the master of spectrum usage, Digital Audio Broadcasting provides a large number of radio stations in a single list with program information, news, and traffic updates, local time automatically adjustment, less unlicensed station interference, more channel options (mono talk, news, weather, non-music), and larger coverage area (North America excluded). Multiple regional pieces of music from your local well-known and new channels with premium sound quality are all accessible to your driving time.
OBDII (Extra device required )
This car audio in-dash unit is compatible with most of Bluetooth type ELM327 OBDII scanners and Wi-Fi OBDII.
Compatible Application: Torque
Display Data: Real-time data and trouble codes from the vehicle’s computer.
(Attention: this function may not work on cars that do not support the ECU reading accessing.)
Backup Camera Cam-In (Extra device required )
This multifunctional car stereo system supports reverse camera input, it can automatically switch to the rear-view camera in 2 seconds when reversing the car after installing the backup camera. (Only support RCA type reverse camera input ).
